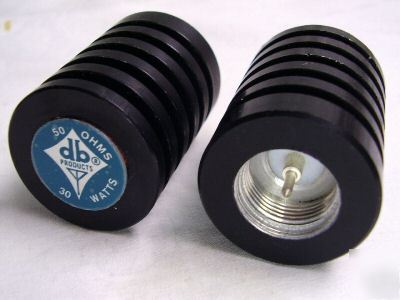

* These absorbtion type coaxial load resistors provide the stable 50 ohm termination required by hybrids and circulators/isolators. The 30 watt load unit is a dry (air) dielectric unit that can be moutned in any position. * Maximum Power Input (at 40 deg C) - 30 watts * Nominal Impedance - 50 ohms * VSWR (up to 1.0 GHz) - 1.1 to 1 * Tx-Rx Bandwidth - 0.025 MHz * Dimensions - 1.5 in X 1.125 inch (New db products DB4601 rf terminator 50 ohms 30W n(m) is the responsibility of Christian Craft) |
