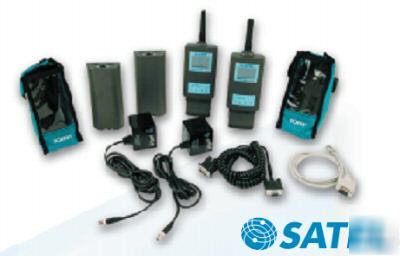

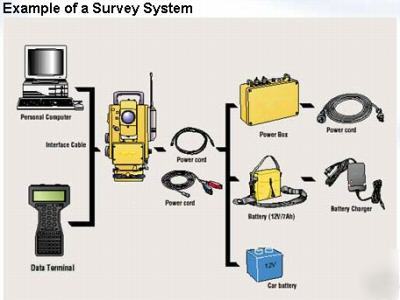

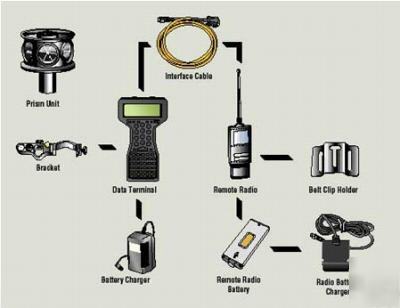

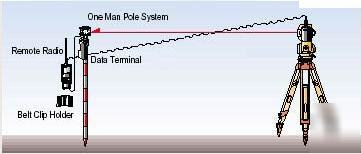

Demo Items-terrific shape (set of 2) "THE SATEL SURVEYING PACKAGE PROVIDES EVERYTHING NEEDED TO EXPERIENCE RELIABLE WIRELESS SURVEYING." perfect for one man surveying applications & GPS Comes with RADIOS, Antennae, Battery, Charger, Radio Case MSLP: $3439 Your Bargain Price: $2850 Connect one data radio to your total station, GPS or robotic instrument; and the other to your data collector, and you’ll be ready to go. It’s as if you have the data collector is plugged directly into the instrument. The hassle-free setup means the only thing you’ll need to remember is charging the batteries. We’re compatible with every total station and most data col- lectors. Satel Data Radios are known the world over for their reputation as solid, dependable data transmitters. Technical Specifications – Remote Data Radio Kit 3Asd The equipment complies with the ETS 300 113 and 300 683 specifications. In addition it meets to EN 300 220-1 with 25 kHz channel spacing Channel Spacing 12.5 kHz / 25 kHz Communication Mode Half-Duplex Sensitivity -116…-110 dBm (BER < 10 E-3) Adjacent Channel Selectivity > 60 dB / >70 dB Intermodulation Attenuation > 65 dB Interface RS-232 or RS-485, RS-422 Interface Connector D15, female DB9 (Base plate) Data Speed of RS Interface 300 – 38400 bps Data Speed of Radio Interface 19200 bps (25 kHz channel) Data Formats Asynchronous data Operating voltage + 9 …+30 Vdc Power Consumption 1.8 VA typical (Receive) 0.05 VA typical (when DTR is Ó0Ò) Temperature Range -13F … 131F (-25 C … +55 C) Antenna Connector TNC, 50 ohm, female Construction Aluminum enclosure Size H x W x D 5.4 x 2.6 x 1.2 in (137 x 67 x 29 mm) Installation Plate 5.1 x 2.5 x 1 in (130 x 63 x 23 mm) * Using the Remote System, a crew can be more productive in the field by moving the data "to the pole" * All that is required is to charge the batteries, connect to the instrument, confirm the settings on the instrument, and select transmit and receive frequencies. (Be sure to check all Federal, State and Local regulations that may apply regarding data radio transmission.) * The 3ASd radios have an LCD screen and control buttons on the radio, providing the user with total control over the radio settings, eliminating the need to connect to a PC Palmetto Equipment and Supply, Inc. © (Satel remote data radio kit (set of 2) +demo items+ is the responsibility of Imelda Henry) |
I_Henry@cedar--rapids.com (Imelda Henry) for more information.
