Tektronix 494 service/ops/prog man'l set plus


Tektronix 494 service/ops/prog man'l set plus
Tektronix 494 Service/Operations/Programming Manual Set in both Very High and in Normal Resolution PDF on CD
->Normal Res Samples (Zipped PDF)<-
These manuals cover the Tektronix 494/494P Spectrum Analyzer. They are scanned from the original manufacturer's manuals. In addition, you get three Application Notes by Tektronix, which are extremely informative and well done.

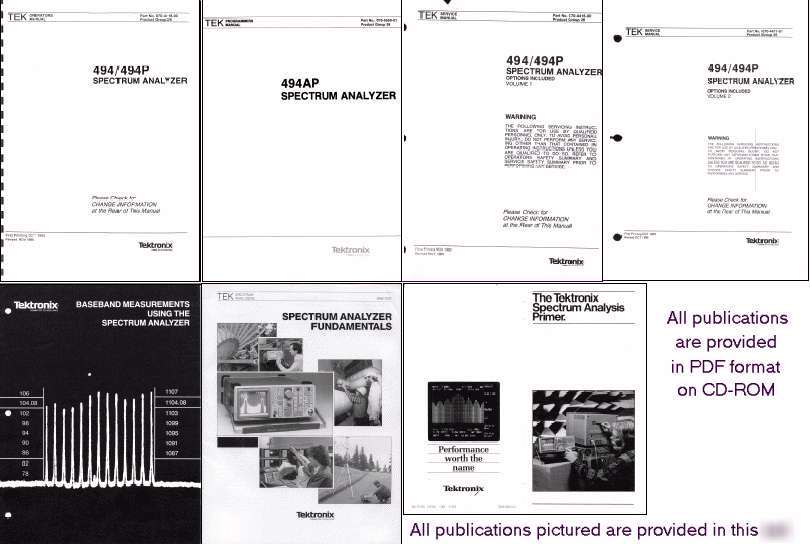

Here's a listing of what's on the disk:
494p_op.pdf - 494/494P op manual (070-4418-00) (printing resolution)
494p_op_sm.pdf - 494/494P op manual (070-4418-00) (text search resolution)
494p_prg.pdf - 494AP prog manual (070-5559-01) (printing resolution)
49p_prg_sm.pdf - 494AP prog manual (070-5559-01) (text search resolution)
494psmv1_sm.pdf - 494/494P service Vol 1 (070-4416-00) (text search res)
494psmv2_sm.pdf - 494/494p service vol 2 (070-4417-01) (text search res)
tek494psmv1.pdf - 494 service vol 1 (070-4416-00) (printing res)
tek494psmv2.pdf - 494 service vol 2 (070-4417-01) (printing res)
BaseBand_SA.pdf - Baseband Measurements Using the Spectrum Analyzer
(written for the 7L5, but the concepts do relate)
SpecAn_Fundamentals.pdf - Spectrum Analyzer Fundamentals
(written for 27xx but fundamentals are fundamentals so apply)
SpecAn_Primer.pdf - A pocket guide written by Tektronix with data
that applies to all spectrum analyzers.
Please note that the programming manual is that of the 494AP, which many folks have used without problems, but I'm sure there are differences.
Two PDFs of each manual are provided, in two resolutions. One is:
Text with Drawings at 600dpi black and white
Schematics at 600dpi black and white
Text with photos at 600dpi grayscale with contrast adjusted
Schematics, board overlays that have color notes at 600dpi 256 colors
This resolution looks nice, but for many purposes uses excessive resources. You can copy the large file to the hard drive in an attempt to achieve maximum performance, but it's certainly of no benefit to you to be required to do that. Therefore, although it's great to have this resolution for those times you need higher definition, I include a second scan of each, in more normal resolutions for daily research and use on the bench.
The second scan is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed.
On the CD you'll receive the large "very high resolution" files, plus the smaller, faster and often more useable text-searchable versions. Some vendors proudly advertise page counts and file sizes, but since those counts and sizes are very often artificially inflated with shareware beg screens and/or blank pages, I'll refrain from joining them and instead will tell you that these manuals are complete as I received them and are scanned in the specified resolutions.
(Tektronix 494 service/ops/prog man'l set plus is the responsibility of Eddie Bailey)
