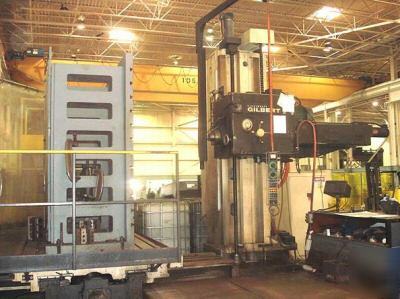

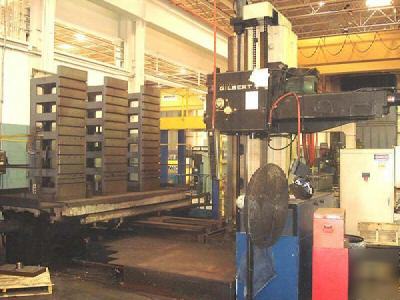

5" CINCINNATI - GILBERT HORIZONTAL TABLE TYPE BORING MILL, TYPE J, S/N: 258-J, NEW 1976 SPINDLE TAPER NO.50 NMTB with power draw bar DISTANCE ACROSS 4 BED WAYS 176â€(includes saddle supports) WIDTH ACROSS 3-WAY COLUMN WAYS 29†MIN. DISTANCE SPINDLE CENTER TO TABLE 2†MAX. DISTANCE SPINDLE CENTER TO TABLE 86†HIEGHT OF TABLE TOP FROM FLOOR 37 3/8†27 SPINDLE SPEEDS 10 TO 1000 RPM INFINITELY VARIABLE SPINDLE AND 4-AXES BALL SCREWS WITH DC SERVO FEED MOTORS HARDENED STEEL BED AND SADDLE WAYS HARDENED AUXILIARY SADDLE SUPPORTS INFITITELY VARIABLE FEEDS THROUGH-OUT AUTOMATIC CLAMPING, ALL TRAVELS 27 PRESELECTIVE SPINDLE SPEEDS FROM PENDANT FULL PENDANT CONTROL WITH AMP METER 3-AXES VRO300M ACU-RITE DIGITSL READOUTS (3) CROSS SLOTS MACHINED IN TABLE TABLE MOUNTED OPERAOR’S WALK-WAY (3 SIDED) 30 HP 3/60/230-460 VOLT SPINDLE DRIVE MOTOR 3/60/460 VOLT ELECTRICS WITH DISCONNECT BOX FLOOR SPACE REQUIRED: 288â€L X 288â€W X 189 ½†HEIGHT OVER PENDANT HEIGHT TO TOP OF COLUMN: 167 ½†* Note: Saddle supports are floor mounted if steel blocks are used under bed (5" cincinnati - gilbert horizontal boring mill table is the responsibility of Iris Good) |
Igood@cedar--rapids.com (Iris Good) for more information.
