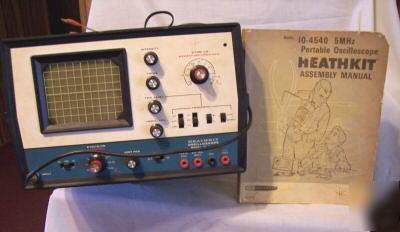

'Heathkit Portable Oscilloscope with 5" round flat face Tube' Attenuator1,2,5 sequence,calibrated and varible Range-200ms to .2us in 7 steps,plus variable. Trigger Modes-AC/DC/TV,+/- Slope:Auto/Norm. Ext Horiz Input-X1 and X10 attenuator and variable. Accelerating Potential-Approximately 1.5 kV Power Requirements-110-130 VAC or 220-260 Vac 60Hz-35 watts Overall Dimensions- 13" wide, 8" high, 17"deep (Heathkit model io-4540 portable oscilloscope-vintage is the responsibility of Glenna Henry) |
G.henry@cedar--rapids.com (Glenna Henry)
for more information.
