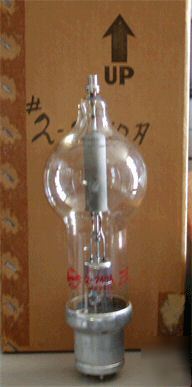

Used in Ham Radio, Induction Heaters, Plasma Generators, and RF Generators. The Eimac 2-240A is a high vacuum diode rectifier inteded for use in rectifier units, voltage multipliers, or in special applications, whenever conditions of extreme ambient temperatures, high operating frequency, high peak inverse voltages, or the production of high-frequency transients would prevent the use of gas-filled rectifier tubes. The 2-240A has a maximum DC current rating of 500 milliamperes and a maximum peak inverse voltage rating of 25000 volts. Cooling is by convection and radiation. A single 2-240A will deliver 320 milliamperes at 10000 volts to a capacitor-input filter with 9000 volts single-phase supply. (New eimac 2-240A tube is the responsibility of Victor Blevins) |
Vblevins@cedar--rapids.com (Victor Blevins)
for more information.
