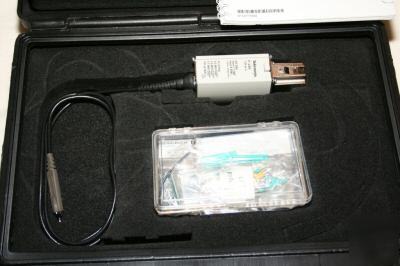

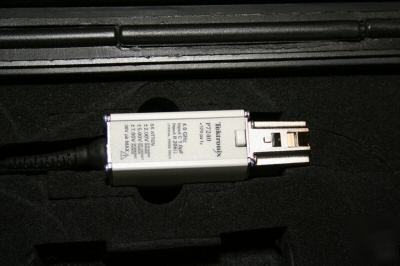

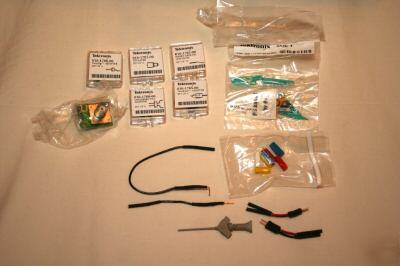

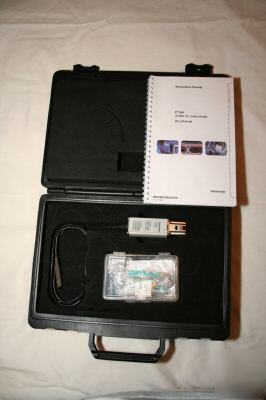

one great condition, little used P7240, 4 ghz ACTIVE probe. This probe is GUARANTEED not DOA. It passes calibration. It COMES with Tektronix box. THE TIP accessories MAY NOT BE COMPLETE. · <120 ps Rise Time (Guaranteed) · <0.5 pF Input Capacitance (P6241 Only) · Small Form Factor Probe Head · 8 Vp-p Dynamic Range (P6241 Only) o o P7240 TekConnect™ Interface · High-speed Digital Systems Design · Component Design/Characterization · Signal Integrity, Jitter and Timing Analysis · Manufacturing Engineering and Test · Signals with Voltage Swings up to 8 Vp-p · Measures 3.0 V Logic, InfiniBand, PCI Express, DDR, Rambus Data Lines, Gigabit Ethernet Selecting the right probe for your application is key to attaining the best signal fidelity in your measurements. Active probes provide truer signal reproduction and fidelity for high frequency measurements. Tektronix provides you a wide range of 4 GHz active probes to select from for your application. The P7240 with TekConnect interface is a high-performance active probe with high bandwidth and low capacitive loading to make it the probe of choice for demanding design applications, such as Rambus, DDR DRAM and AGP. This probe and others in the family are also suited for applications in the communication industry, for measurements on Fibre Channel and Gigabit Ethernet. With the TekConnect interface, you can be assured that maximum signal integrity is maintained to meet present and future bandwidth needs. (Tektronix P7240 4 ghz active probe is the responsibility of Christian Welch) |
C.Welch@cedar--rapids.com (Christian Welch) for more information.
