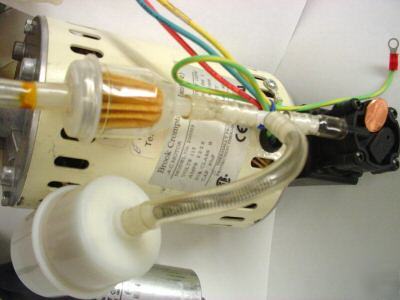

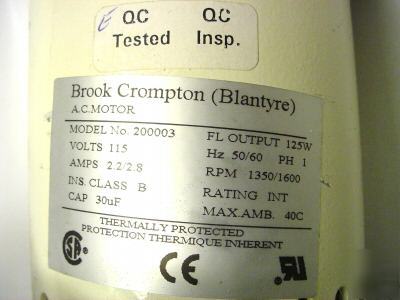

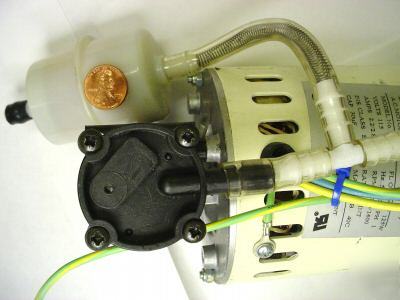

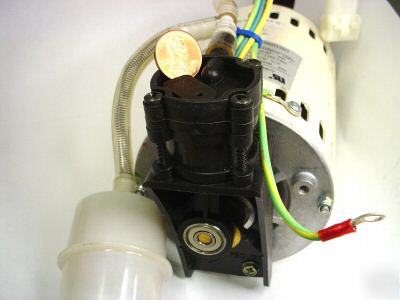

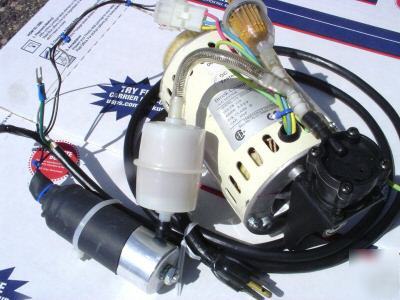

VACUUM PUMP 30MF CAP FILTER 1/6HP Motor 115VAC CORD PLUG TESTED and ready to run and Dry Plastic for Molding same as other Vacuum Pumps such as Gast. Vacuum Pump with Piston and Reed Valves is oil less and gives you 25 inches of mercury vacuum (84650 pascals) tested on a vacuum gauge at 1,200 cubic inches per minute. 115VAC 1,600 RPM 1/6HP single phase motor you get over 1,200 vacuum cycles per minute. Includes the insulated and wired 30mf capacitor for high torque starts, and inline air filter, and an extra timing belt to power other devices. This includes the 115VAC line Cord and plug wired and tested like Gast Vacuum pumps ready to run. Motors are wired to the 30 mf insulated capacitor with a 115 VAC Line Cord and are tested, and ready to go. There is no exposed wires, so there is no shock hazard. Motor is tested on a Power Factor Meter. As a Vacuum Pump, the motor operates at about 80 watts 0.89 Power Factor. The motor can also handle a heavy load as the label describes, 1/6 horsepower and over 120 watts. The motor is 1600 RPM and the piston is 1.1" diameter with a .8 inch stroke. Pi r squared is .945 inches times .8 equals .75625 cubic inches times 1600 equals 1,210 cubic inches per minute. Taken out of working offset printing machines that feed rollers and had multi paper suction feeds. Works great to remove bubbles from glue, expand marshmallows (tornado demonstration), use as a hold down fixture on work pieces, to dry molding plastic better than heating, (Vacuum pump motor 115VAC 25 in of hg dry plastic gast is the responsibility of Keisha Sherman) |
